DOLLE CLICKFIX 36 GOLD MINI 0.92 x 0.60M

Store/Brands/Dolle

Product Details

Brand: Dolle

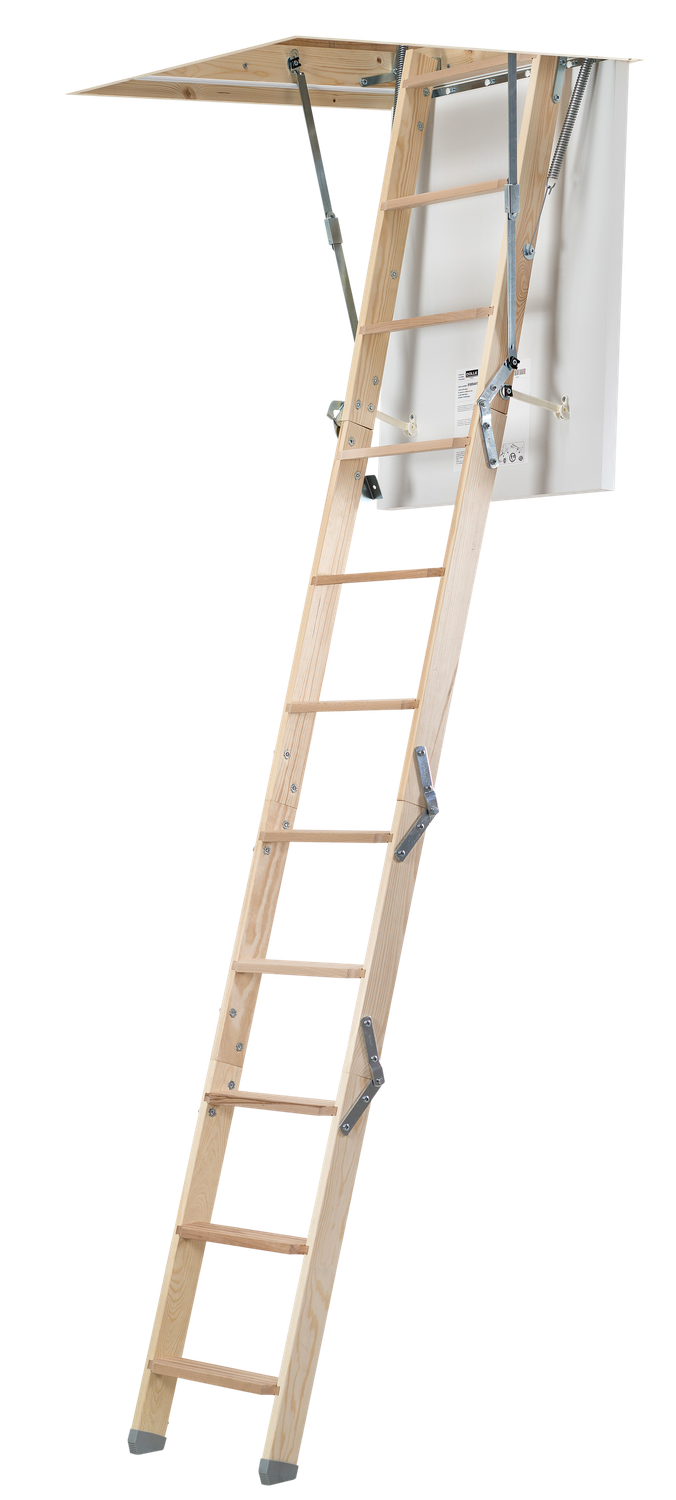

The Dolle ClickFIX® 36 Gold Mini Timber Attic Access Kit is ultra-compact and designed to fit securely into smaller hatches without the need for joist alterations, making this the ideal solution for users with limited space. Featuring a spring-assisted stowage mechanism for effortless opening and closing of the attic ladder, the Mini surround is sized just 0.90m x 0.58m, making this one of the most compact timber attic kits in the world. Ideal for those looking for a safe access solution to the attic. Ideal choice for individuals seeking a compact and secure access solution to their attic, especially when dealing with small hatch openings. Suitable for floor to ceiling heights up to 2.84m, with excellent insulation properties the attic ladder has a component U-value of 0.99 W / m²K.

Features

36mm professional insulated trapdoor reduces heat loss
For narrow spaces
Rubber draught excluder
Easy operation 3-step click assembly: install the casing, attach the ladder and fasten the door
Require no arc of clearance or storage space in the attic
Slip-resistant treads and feet
Fast single person assembly
Lightweight but sturdy
150kg load capacity

Downloads

Dolle CF36 Mini Gold Mounting Instructions

Dolle CF36 Mini Gold Dimensions

Video

Notes

Load includes user, tools, materials, etc.
10 year guarantee against manufacture defects in workmanship or materials

Specifications

Size	2.84m
Model ID	1038861
Style	Attic Access Kit
Project Type	Gaining access to unused space
Material	Timber
Certifications	EN14975,EN 12207 Class 4
Standard Classification	Domestic
Guarantee	10 Year
Number of Sections	4
Sections x Rungs	4 x 3
Number of Treads	12
Number of People for Installation	1
Color	Wood
Foot Material	Plastic
Unique Features	Compact Designs,Small Hatch Openings,Limited Loft Space
Unique Benefit	Ultra-compact for tight spaces
Fire Rated	No
Opening Device	Timber Pull and Push Rod
Door Included	Yes
Fits within Standard 0.6m Joist	Yes
Height Extension Kit Available	No
Handrail Included	No
Hinge Clip Included	No
Locking Device	Yes
Pull Down Rod Included	Yes
Requires Cutting Foot Angle	Yes
Separate Foot Attachment	Yes
Universal Stowing Pole Included	Yes

Dimensions

Product Weight (kg)	18.0kg
Closed Length (m)	0.9m (2ft 11in)
Closed Width (m)	0.58m (1ft 11in)
Closed Depth (m)	0.32m (1ft 1in)
Max Load (kg)	150kg (23st 9lb)
Max. Floor to Ceiling Height (m)	2.84m (9ft 4in)
Shipping Weight (kg)	20.1Kg
Min. Floor to Ceiling Height (m)	Cut to suit
Ladder Width (m)	0.4m (1ft 4in)
Tread Width (m)	0.38m (1ft 3in)
Tread Spacing (m)	0.25m (10in)
Tread Depth (m)	0.07m (3in)
Opening Arc (m)	1.14m (3ft 9in)
Max. Landing Space (m)	1.07m (3ft 6in)
Trapdoor Insulation Thickness (mm)	36mm (1.5in), U-value 0.96
Min. Loft Opening Length (m)	0.93m (3ft 1in)
Min. Loft Floor Opening Size (LxW) (m)	0.93m x 0.60m (3ft 1in x 2ft)
Casing Length (m)	0.9m (3ft)
Casing Width (m)	0.58m (1ft 11in)
Casing Height (m)	0.12m (5in)
Shipping Dimensions L x W x D (m)	0.9m x 0.58m x 0.32m (2ft 11in x 1ft 11in x 1ft 1in)
