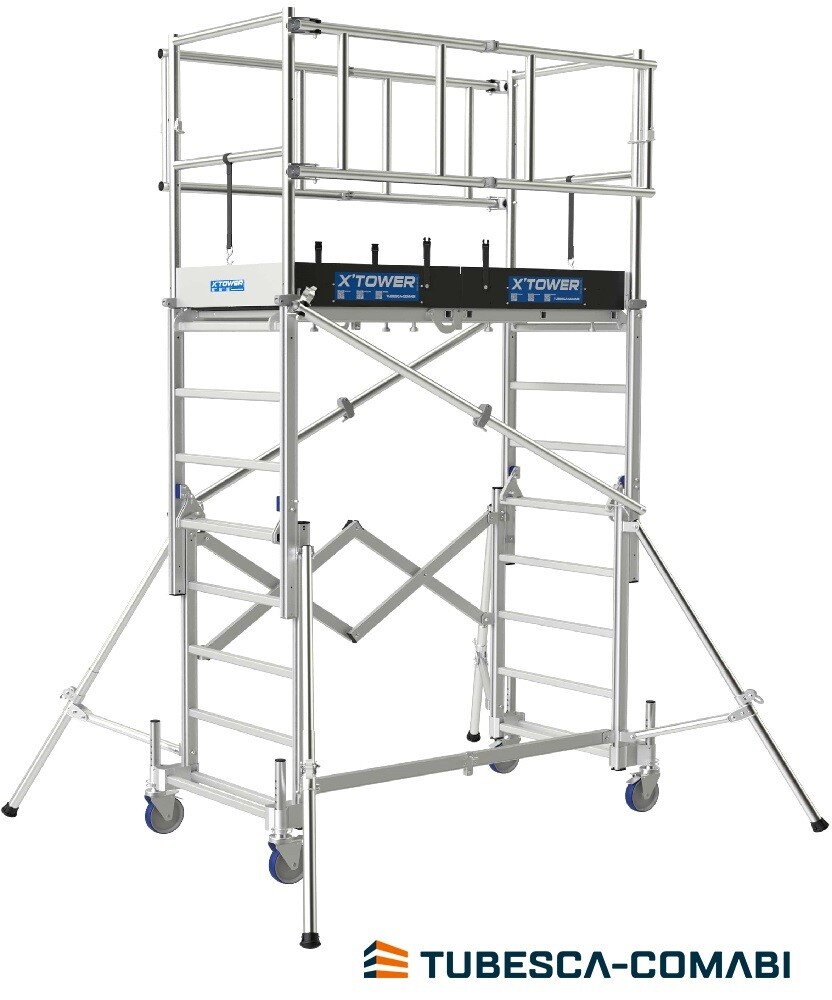

The Tubesca 2240552 X Tower is approved to EN 1004 and can be erected in three minutes by one person with the minimum of training from the ground for maximum safety. The compact design can be stored and transported inside a small van and erected by one person in three minutes. Available in two sizes the X tower system has platform heights of 1.3 - 2.0 m and a maximum working height of 4.0 m. Manufactured using industrial grade components for frequent use. Intuitive gravity latches make rung-by-rung height adjustment effortless allowing the tower to be quickly deployed to your desired height. Suitable for trade use.

Features

• Telescopic design can be erected in less than 3 minutes by one person
• Effortless multi height adjustment
• Available in two platform heights, 2240552 1.30 - 2.05 m & 2240553 1.30 - 2.80 m
• Two components – tower and folding anti-slip platform
• Compact to be transported in a small van, 2240552 1.34 x 0.98 x 0.82 m & 2240553 1.41 x 0.98 x 0.92 m
• Fitted with four 150 mm adjustable-height locking castors
• Foldable toe boards integrated to the platform
• Stabilisers are millimeter adjustable for uneven ground
• Industrial strength design and components for frequent use
• 2-year warranty
• 200 kg work load capacity

Specifications

Notes

• Safe working height based on a 2m height and reach of a person whilst standing on the highest level platform.
• Load includes user, tools, materials, etc.
• Guarantee against manufacture defects in workmanship or materials
