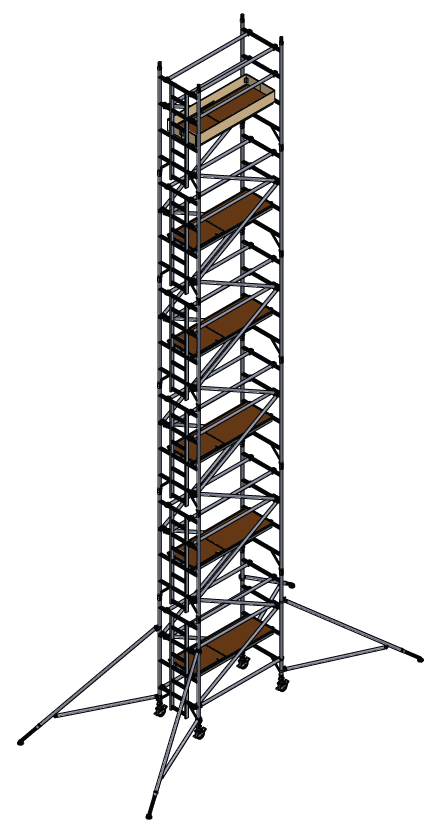

The UTS 500 Ladderspan Towers are designed for safety and ease of use, there are no tools required and the provided manual is easy to follow ensuring a quick and simple construction. The UTS11112 UTS 500 Ladderspan Tower system has single 0.85m frame width that is 1.80m in platform length and platform heights from 11.20m. Flexible enough to be used both indoors & outdoors and is compatible with the BoSS range.

Features

• Fully certified to the very latest BSI (British Standards Institute) Kitemark (KM617169) in respect to BSEN1004-1:2020 CLASS 3 8/12 XXXD
• Conforms to the requirements of the 3T erection and dismantling method
• Available in 23 working heights for each of the 4 different Widths and Lengths, from 1.2 - 12.2m (platform height) in 0.5m increments
• Weight rating 950kg less tower self weight
• Frame Sections available in 850mm and 1450mm widths and 1.0m, 1.5m and 2.0m Heights• Fully welded Ladder incorporated into frame
• Fitted with Dual locking castors individually certified to 700kg. Tower base plates are available as an alternative
• Platform are available in 2 different lengths – 1.8m and 2.5m with a non slip finish for additional safety, damage resistant claws, and an automatic self closing trapdoor. Complete with Wind-lock device. Weight rating of 275kg
• Platform can be set at increments of 0.5m ensuring maximum flexibility to work at a variety of heights
• Colour coded hooks with an over-sized trigger for easier operation
• Articulated swivel rubber feet to outriggers and over-sized cast aluminium fixings for ease of attachment
• Floating spigots for ease of assembly and dismantling
• All components come with a 5 year manufacturer’s warranty against defects
• Manual also available through QR code printed on all frames and platforms

Notes

• Safe Working Height based on a 2m height and reach of a person whilst standing on the highest level platform.

Downloads

UTS 500 Access Tower Instruction Manual
